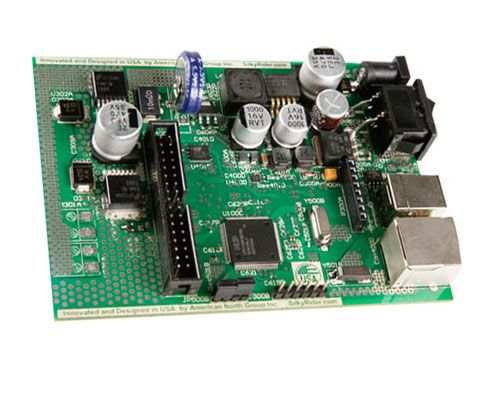

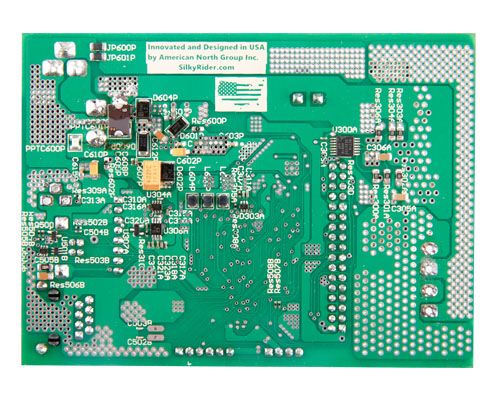

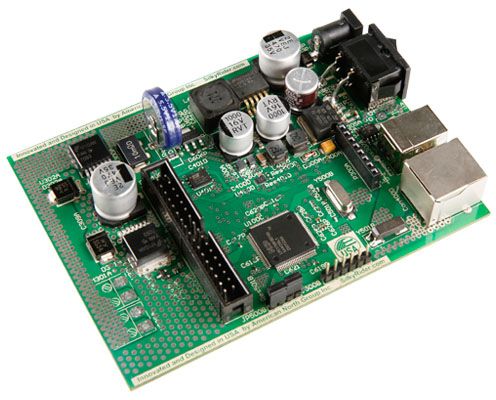

Intelligent Curtain Controllers PCB Board Assembly

* PCB board file with parts list provided by customers

* PCB board made, circuit board parts purchased by us

* PCB board with parts assembled

* Electronic testing circuit board or PCBA

* Fast delivery, anti-static packaging

* RoHS Directive-compliant, lead-free

* One-stop service for PCB design, PCB layout, PCB manufacture, component purchasing, PCB assembly, testing, packing, and PCB delivery

Get Inquiry

Category: Automated

* PCB fabrication from 1-32 layers. (single-sided, double-sided, multi-layer, HDI board, buried & blind holes board, etc)

* Material procurement and management

* Quick-turn PCBA Prototype and NPI (new product introduction)

* PCBA and through-hole assembly

* IC pre-programming & Function verification & burn in testing

* Complete Unit assembly (Box building includes the plastic, screen, metal enclosure, membrane, coils, wire harness, etc.)

* Small volume is accepted and high-mix model solutions

* AOI, in-circuit test, BGA placement

* Engineering support including end-of-life and obsolete component replacement and design support for circuit, metal, plastic casing and packaging

Surface processing	HASL/Plating gold/immersion gold /Plating gold finger/OSP/ Flux
Layers	1~32 layers
Copper Thickness	O.5OZ~5OZ
Board Thickness	0.2mm~6.0mm
Min Hole Size	0.2mm
Min Line Width	0.1mm
Min Line Spacing	0.1mm
Max board Size	508mm*609mm
Solder mask type	Green/ Black/ Red/ Yellow/ White/Blue…
Silkscreen color	White / Yellow/ Black
Data file format	Gerber file and corresponding drilling file, PROTEL series, BOM list
Base material	FR4, CEM3, PTFE, Aluminum based, High TG FR4, High frequency board, Rogers
