Precision Assembly
Surface Mount Technology (SMT) is a technology that put electronic components directly on the PCB surface. This technology uses automated equipment to accurately place the tiny electronic components on the PCB pad, and complete the assembly of the circuit board through the process of backwalm or peak welding. SMT technology has high degree of automation and accuracy, can effectively improve production efficiency and reduce human errors, so it has been widely used in modern electronics manufacturing.
We are equipped with the state-of-the-art manufacturing facility and sophisticated machinery to support the fabrication. We also have highly trained and experienced personnel to make sure your job is done faster with high quality. Our capabilities in high quality SMT pcb assembly services include, but not limited to:
LST has set up the quality management system certified RoHS, IPC-600, IPC-610, ISO, IATF, and REACH for PTH and SMT PCB assembly.

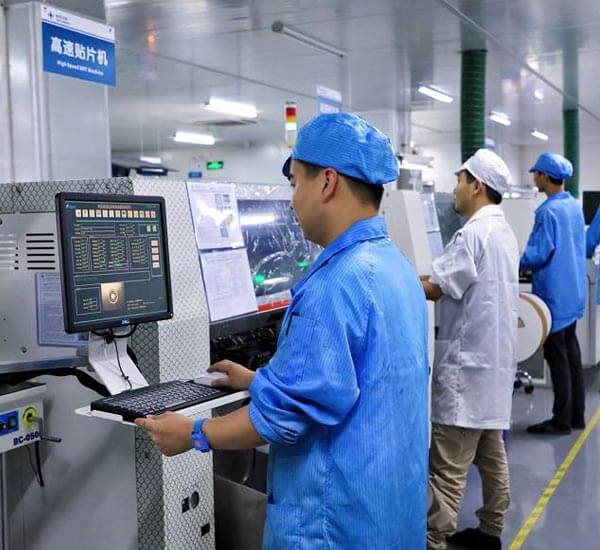

We have 8 high-speed SMT mating lines，Daily production capacity exceeds 30 million points.We can quickly complete the customer’s order.
In-house manufacturing enables us to control the quality and costs as well. In addition, we have reliable suppliers who offer qualified materials at lower prices.
24-hour rapid response to provide you with one-on-one nanny consultant pre-sales, sales, after-sales tracking service, for you to answer any difficult questions.
An SMT assembly line is automatic, including a loader, solder paste printing machine, SPI (solder paste inspection) machine, high-speed and functional mounting machines with feeders, reflow oven, and AOI (automatic optical inspection).
The SMT PCB assembly process is:
A loader sends a PCB into the solder paste printing machine, where an SMT stencil is set up. A scraper presses the solder paste to pass the holes of the SMT stencil and print on the PCB pads.
The PCB printed with solder paste passes the SPI machine, which quickly scans the solder paste and compares the thickness, position, and size of the solder paste with the set-up parameters. It ensures solderability.
The PCB with solder paste goes into a mounting machine, where a feeder sends SMDs to a position, and the nozzles of the mounter move to pick and place the SMD to a designated PCB pad one by one. The high-speed mounter picks and places SMDs with small footprints, such as resistors and inductors, while the functional mounter picks and places SMDs with larger footprints, such as connectors and ICs.

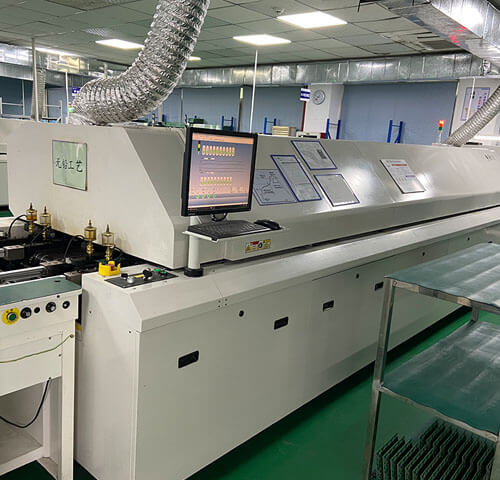

The PCBA enters a reflow oven, where it is preheated and baked. The reflow temperatures change according to the reflow profile. The solder paste melts to release the flux, which activates to facilitate the soldering. At the peak of reflow soldering, the PCB pads, solder paste, and SMD pins form metallic compounds, which marks the success of soldering. After that, the temperature goes down. The PCBA cools down and forms permanent joints.
The PCBA passes the AOI machine, which scans the entire surfaces of the PCBA and compares it with the reference. The AOI ensures almost all surface defects are identified and rectified, including soder bridges, voids, tombstones, etc.
SMT technology will continue to maintain its important position in the future and show multiple development trends.
1. With the continuous improvement of the miniaturization and integration of electronic products, SMT technology will further develop to meet the demand for smaller and more powerful components.
2. Intelligence will become an important development direction of SMT technology in the future. SMT technology will apply artificial intelligence and machine learning technology more to achieve automated production.
3. The improvement of environmental awareness will promote the use of more environmentally friendly production methods. The SMT industry adopts surface assembly to reduce lead pollution and harmful waste in traditional welding processes, which is more in line with environmental protection requirements.
4. The continuous development of intelligent manufacturing technology, the SMT industry will gradually realize digitization and intelligence. This will help improve production efficiency, reduce costs, and improve product quality, thereby enhancing the competitiveness of enterprises.
1.LST has a strong engineering team and professional component procurement team. We are equipped with innovative technologies and advanced production equipment (tin paste printing machine, pickup machine, reflux furnace, AOI detector).
2.LST provides all -round services, including services before -sale, medium and after -sales. Our high -quality capabilities and service attitude can provide solutions as soon as possible when the customer needs. We actively solve each after -sales quality problem during the after -sales stage.
3. We have passed the UL ISO9001, Rohs/Reach and other certifications, which reflects our production qualification.
4.LST has 18 years of manufacturing experience and has won a good reputation in the industry. We provide one -stop PCB business for customers around the world.
We're pleased to be welcoming customers to join us.
Thank you for your interest in solar energy! Whether you're curious about transitioning to solar power for your home or business.
Contact us today via the form below social Share and let's take the first step.
Outsource SMT prototyping and small production service from us. Shenzhen Leadsintec Technology Co., Ltd. is what you need in this electronic world. We have assemblies that can install SMDs in PCBs, whether for single or small quantities. This efficient and timely service is available to all industries seeking a swift solution. Companies that want our small batch SMT assembly service can contact us anytime. We serve almost every industry, from consumer to automation. With over two decades of experience in this industry, you can trust our service.
Our team assists you in PCB design and SMD selection for the specific application you choose. It includes every miniature component and the routings in the boards. The efficiency level depends on the quality of solder and SMDs, which we strictly consider. Our team performs solder paste printing and its inspection to ensure conduction and insulation efficiency. It leads to superior performance of SMDs in the electronic boards in each application. Our automatic machines have a remarkable pick-and-place speed in the SMD soldering process. All connections and routes meet the best practices for maximum compatibility.
Every prototype and smaller quantity of SMDs we manufacture meets global standards. It is a highly important part because it allows us to serve on a worldwide level. We comply with ISO 9001, UL, TS 16949, and RoHS standards for global acceptance. Outsource our high-precision SMT contract manufacturing, which includes an automated solution. The electronic industry relies on this service for prototyping, and we offer this solution to meet their needs. Since precision is crucial, we focus carefully on each unit. Miniature components, such as SMDs, are selected and installed accurately in an entire batch. This is why you should outsource this production to us.
The processing speed is fast, resulting in the timely completion of orders. Whether it is about engineering methods or the software we use, you provide a complete solution to all. Our high innovation in the production process includes small-batch production for prototyping solutions. It fulfills the need for compatibility, precision, and integrity of SMDs in the desired applications. We conduct quality inspection from visual to X-ray testing, which includes in-circuit and functionality tests.
Save on costs by outsourcing your SMT service to us. We offer budget-friendly prices, whether it is for a prototype or multiple units. Our miniature SMDs and their installation service are cost-effective for every company. Since we deal on an international level, you can expect a global supply from us. Place your orders and receive timely production and delivery to your desired destination.
