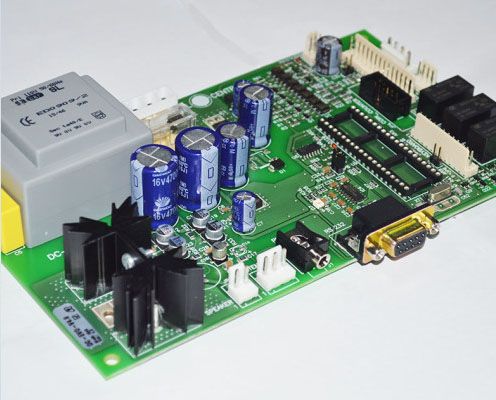

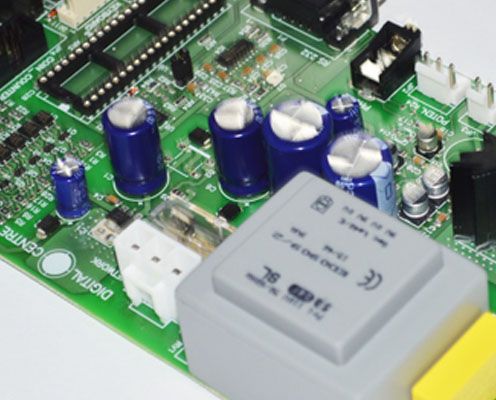

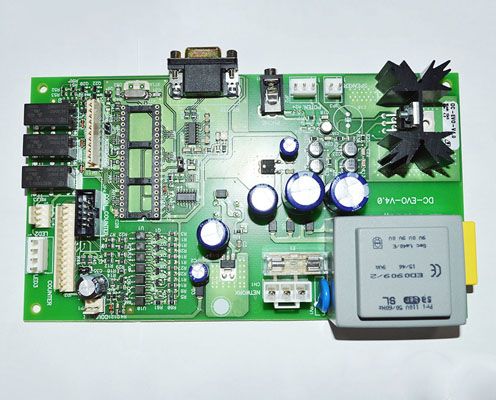

Elevator Power Controller Board (OEM Only)

* File with parts list provided by customers

* PCB board made , circuit board parts purchased by us with parts assembled

* Electronic testing circuit board or PCBA

* Fast delivery, anti-static package

* RoHS Directive-compliant, lead-free

* One stop service for PCB design , PCB layout, PCB manufacture , components purchasing, PCB assembly, test, packing and PCB delivery

Get Inquiry

Category: Automated

* PCB fabrication from 1-32 layer. (single side, double side, multi-layer, HDI board, bury & blind holes board etc)

* Material procurement and management

* Quick-turn PCBA Prototype and NPI (new product introduction)

* PCBA and through hole assembly

* IC pre-programming & Function verification & burn in testing

* Complete Unit assembly (Box building include the plastic, screen, metal enclosure, membrane, coils, wire harness etc.)

* Small volume is accepted and High-mix models solutions

*AOI, In circuit test, BGA placement

* Engineering support including end of life and obsolete component replacement and design support for circuit, metal, plastic casing and packaging.

Surface processing	HASL / Plating gold / immersion gold / Plating gold finger /OSP / Flux
Layers	1~32 layers
Copper Thickness	O.5OZ~5OZ
Board Thickness	0.2mm~6.0mm
Min Hole Size	0.2mm
Min Line Width	0.1mm
Min Line Spacing	0.1mm
Max Board Size	508mm*609mm
Solder Mask Type	Green/Black/Red/Yellow/White/Blue
Silkscreen Color	White/ Yellow/ Black
Data File Format	Gerber file and corresponding drilling file, PROTEL series, BOM list
Base Material	FR4, CEM3, PTFE, Aluminum based, High TG FR4, High frequency board, Rogers
