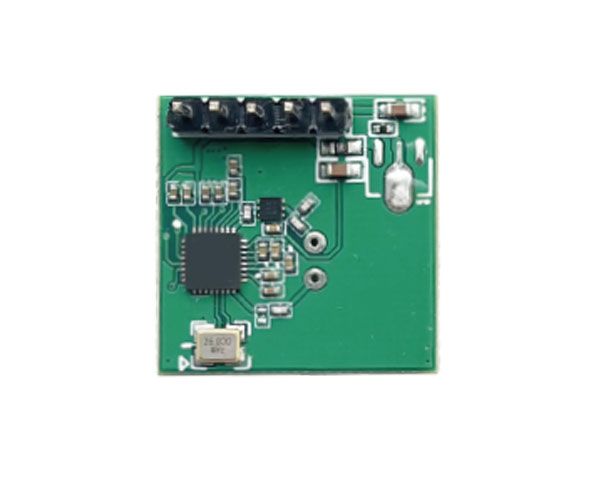

The 5.8GHz radar sensor is a low-power, compact module (20mm x 20mm) with 35mA power consumption, featuring a self-developed integrated chip with microwave, signal processing, and MCU circuits. A small plane antenna is used to optimize performance while minimizing size.
5.8GHz high-altitude application radar sensor is a low -power radar module. The overall power consumption is about 35mA, the module size is 20mm*20mm. The sensor uses our self-developed radar induction chip. The chip is fully integrated with 5.8GHz microwave circuits, medium frequency loading circuits, signal processing circuits and powerful MCUs.
The periphery is matched with a small plane antenna to ensure the performance of the sensor and greatly reduce the overall size.
| size | 20*20mm |
| working frequency | 5.8GHz±75MHz |
| Match MCU | External OTP |
| Power supply voltage | 2.7-4.8V |
| Power consumption | As low as 40UA |
| PCB process | FR4 two-layer board |
| output signal | IF/GPIO |
| Communication Interface | I2C |
| Sensing distance | 6-8m |
⇒Rogers/Rogers/Rogers, Taconic/Taikangley, Armon, Isola, F4BM/Wangling, PTFE/Tieflon.
⇒Can provide the best quality materials and related resources for customers in the high -frequency board industry, and fundamentally control the quality of the product.
⇒The maximum thickness ratio 10: 1 maximum copper thickness 6oz maximum working board size 2000x610mm.
⇒The thinnest 4 -layer board 0.33mm minimum mechanical hole/pad 0.15/0.40mm.
⇒Drilling accuracy +/- 0.05mmpth pore diameter tolerance +/- 0.05mm.
⇒Minimum line width/line distance 3mil/0.075mm.
⇒Mature hybrid technology: FR4+Rogers/Rogers, FR4+PTFE, FR4+408HR, ceramic+FR4.
⇒Equipped with a full set of surface treatment production lines for the high -frequency board industry.
⇒Introduce computer V cutter, German press, laser rig, mechanical drilling machine, automatic exposure machine, LDI, AOI.
⇒The industry is equipped with a full set of surface treatment equipment (Shen Jin, Shenyin, Shen Tin, OSP, tin spray, gold -plated thick gold, tin plating, silver -plated) to reduce the risk of outsourcing production.
⇒Strictly control in accordance with IPC standards to ensure that the qualification rate of shipments is 100%.
⇒Imported automatic detection equipment and temperature circulation inspection equipment to ensure high reliability and stability of the product.
⇒Strictly implement the quality PDCA process and continue to improve product performance.
