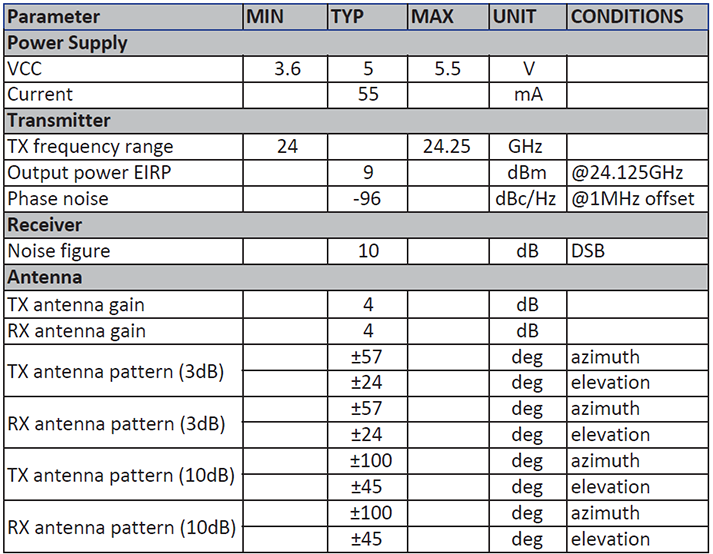

-TX frequency range: 24 ~ 24.25GHz
-TX EIRP: 9DBM
-Suctiles noise: -96dbc/Hz@1MHz offset
-RX noise coefficient: 10 DB DSB
-5V power current: 55mA
-Sim size: 22.95mm × 20mm

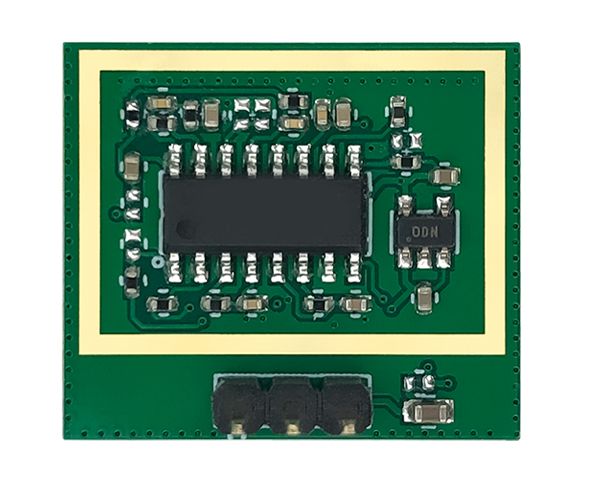

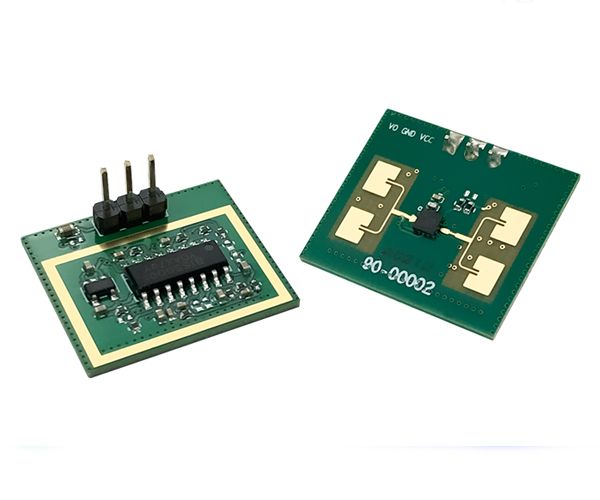

The 24G Internet of Things microwave radar module can be used to detect the movement goals within a small range and output high and low level information without being affected by the installation of the environment.
24G has the advantages of industry -leading outstanding performance, small size, low cost, and low power consumption, and can provide customers with ideal and better performance object mobile monitoring solutions.
⇒Rogers/Rogers/Rogers, Taconic/Taikangley, Armon, Isola, F4BM/Wangling, PTFE/Tieflon.
⇒Can provide the best quality materials and related resources for customers in the high-frequency board industry, and fundamentally control the quality of the product.
⇒The maximum thickness ratio 10: 1 maximum copper thickness 6oz maximum working board size 2000x610mm.
⇒The thinnest 4-layer board 0.33mm minimum mechanical hole/pad 0.15/0.40mm.
⇒Drilling accuracy +/- 0.05mmpth pore diameter tolerance +/- 0.05mm.
⇒Minimum line width/line distance 3mil/0.075mm.
⇒Mature hybrid technology: FR4+Rogers/Rogers, FR4+PTFE, FR4+408HR, ceramic+FR4.
⇒Equipped with a full set of surface treatment production lines for the high -frequency board industry.
⇒Introduce computer V cutter, German press, laser rig, mechanical drilling machine, automatic exposure machine, LDI, AOI.
⇒The industry is equipped with a full set of surface treatment equipment (Shen Jin, Shenyin, Shen Tin, OSP, tin spray, gold -plated thick gold, tin plating, silver -plated) to reduce the risk of outsourcing production.
⇒Strictly control in accordance with IPC standards to ensure that the qualification rate of shipments is 100%.
⇒Imported automatic detection equipment and temperature circulation inspection equipment to ensure high reliability and stability of the product.
⇒Strictly implement the quality PDCA process and continue to improve product performance.
