1. Detect the body’s stills
2.24GHz radar sensor
3. Based on enhanced Doppler radar technology to achieve personnel perception function;
4. Realize the synchronous perception function of sports staff and static personnel;
5. Most distance of sports perception: ≤13 meters
6. Maximum motion perception: ≤5 meters
7. The maximum distance of human perception: ≤3 meters
8. Bidth beam width: level 90 °/vertical 60 ° fan beam.
9. The maximum distance of fall detection: 1.5 meters (radius).
10. With scene recognition ability, you can identify someone/no one, and the person’s activity state in the state;
11. It is not affected by temperature, humidity, noise, airflow, dust, light, etc., which is suitable for harsh environments;
12. The output power is small, and long -term irradiation has no harm to the human body.

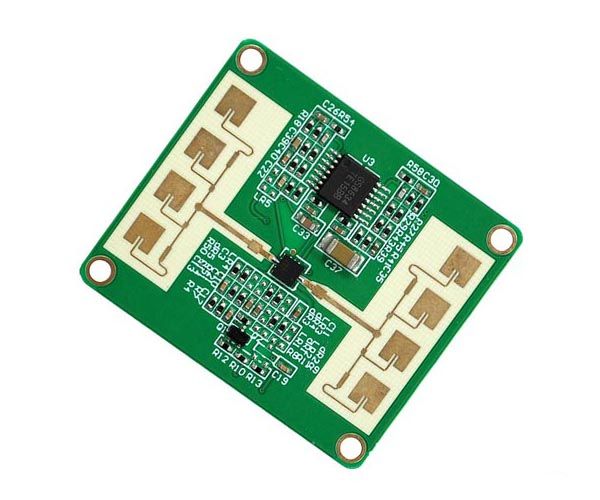

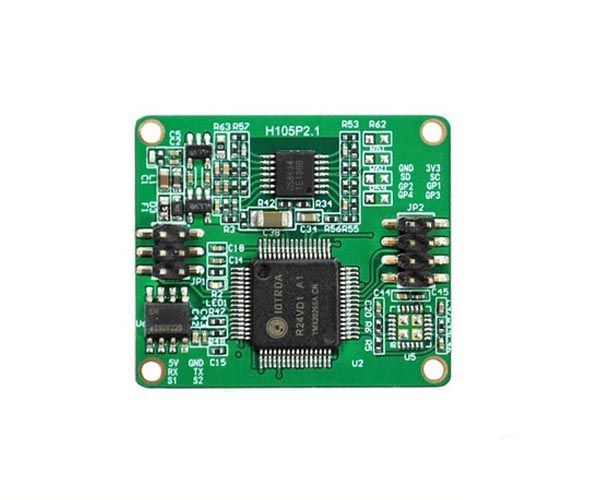

The 24Ghz microwave radar module is a radar detection module based on millimeter-wave Doppler radar system, which realizes human biomotion sensing and human biosensing. This module is based on the enhanced Doppler radar signal processing system, and realizes the wireless sensing of the sleeping state of the personnel in a specific place through the synchronous sensing technology of the Doppler parameters of the movement of the personnel and the physiological parameters of the personnel.
| Parameter content | Minimum | Typical | Maximum | unit |
| Sports personnel detection distance | – | – | 13 | m |
| Static micro -motion staff perception distance | – | – | 5 | m |
| Sleep staff perception distance | – | – | 2.5 | m |
| Sleep breathing perception distance | 0.5 | 1.5 | m | |
| Radar detection angle (level) | – | 90 | – | angle |
| Radar detection angle (piercing) | – | 60 | – | angle |
| Working voltage (VCC) | 4.5 | 5 | 6 | v |
| Work current (ICC) | 90 | 93 | 100 | mA |
| Work I o irrigation/output current (IIO) | – | 8 | 20 | mA |
| Work temperature (TOP) | -20 | – | +60 | ℃ |
| Storage temperature (TST) | -40 | – | +80 | ℃ |
⇒Rogers/Rogers/Rogers, Taconic/Taikangley, Armon, Isola, F4BM/Wangling, PTFE/Tieflon.
⇒Can provide the best quality materials and related resources for customers in the high -frequency board industry, and fundamentally control the quality of the product.
⇒The maximum thickness ratio 10: 1 maximum copper thickness 6oz maximum working board size 2000x610mm.
⇒The thinnest 4 -layer board 0.33mm minimum mechanical hole/pad 0.15/0.40mm.
⇒Drilling accuracy +/- 0.05mmpth pore diameter tolerance +/- 0.05mm.
⇒Minimum line width/line distance 3mil/0.075mm.
⇒Mature hybrid technology: FR4+Rogers/Rogers, FR4+PTFE, FR4+408HR, ceramic+FR4.
⇒Equipped with a full set of surface treatment production lines for the high -frequency board industry.
⇒Introduce computer V cutter, German press, laser rig, mechanical drilling machine, automatic exposure machine, LDI, AOI.
⇒The industry is equipped with a full set of surface treatment equipment (Shen Jin, Shenyin, Shen Tin, OSP, tin spray, gold -plated thick gold, tin plating, silver -plated) to reduce the risk of outsourcing production.
⇒Strictly control in accordance with IPC standards to ensure that the qualification rate of shipments is 100%.
⇒Imported automatic detection equipment and temperature circulation inspection equipment to ensure high reliability and stability of the product.
⇒Strictly implement the quality PDCA process and continue to improve product performance.
