Microwave radar module(OEM/ODM)

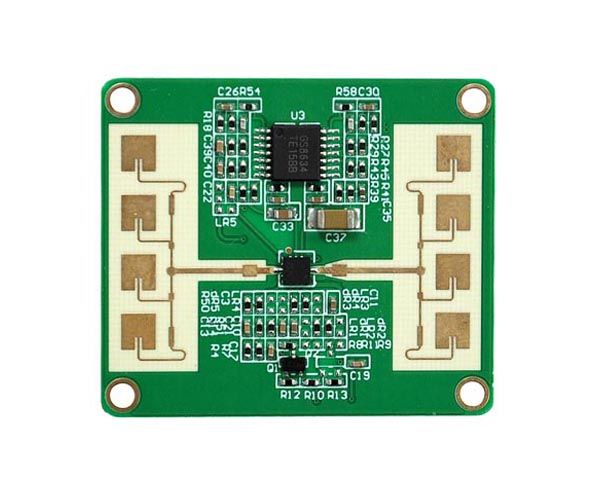

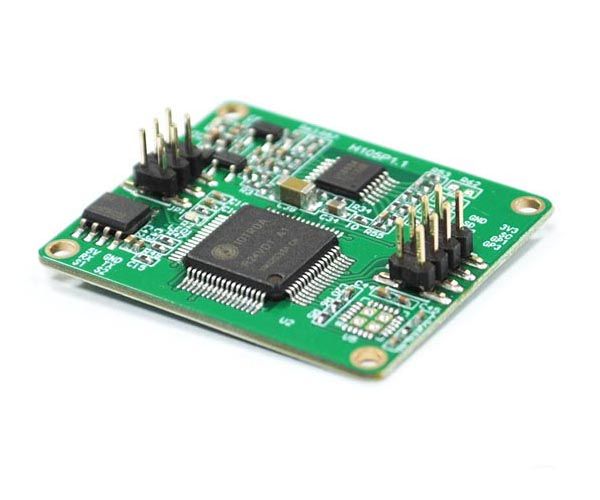

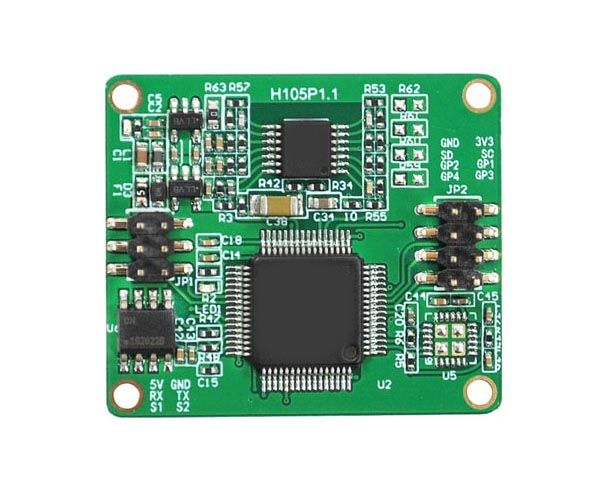

24Ghz Breathing and Sleep Monitoring, Baby care Radar Module
1. 24GHz millimeter wave radar sensor;
2. Realization of breathing monitoring and motion sensing functions;
3. with the ability to recognize the scene, identify someone/someone and detect the activity status of the person;
4. Unaffected by temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environments;
5. has the ability to recognize scenes, can recognize someone/no one, and the activity state of people under the state of someone;.
6. Maximum distance of motion sensing: ≤ 13 meters
7. Maximum distance of human body sensing: ≤ 3 meters
8. Maximum distance of respiration frequency detection: 1.5 meters
9. Sleeping person sensing distance: ≤2.5 meters
10. Antenna beam width: horizontal 90 ° / vertical 60 ° fan beam
The 24Ghz microwave radar module is a radar detection module based on millimeter-wave Doppler radar system, which realizes human biomotion sensing and human biosensing. This module is based on the enhanced Doppler radar signal processing system, and realizes the wireless sensing of the sleeping state of the personnel in a specific place through the synchronous sensing technology of the Doppler parameters of the movement of the personnel and the physiological parameters of the personnel.
| Parameter content | Minimum | Typical | Maximum | unit |
| Sports personnel detection distance | – | – | 13 | m |
| Static \ micro -motion staff perception distance | – | – | 5 | m |
| Sleep staff perception distance | – | – | 2.5 | m |
| Sleep breathing perception distance | 0.5 | 1.5 | m | |
| Radar detection angle (level) | – | 90 | – | angle |
| Radar detection angle (piercing) | – | 60 | – | angle |
| Working voltage (VCC) | 4.5 | 5 | 6 | v |
| Work current (ICC) | 90 | 93 | 100 | mA |
| Work I \ o irrigation/output current (IIO) | – | 8 | 20 | mA |
| Work temperature (TOP) | -20 | – | +60 | ℃ |
| Storage temperature (TST) | -40 | – | +80 | ℃ |
⇒Rogers/Rogers/Rogers, Taconic/Taikangley, Armon, Isola, F4BM/Wangling, PTFE/Tieflon.
⇒Can provide the best quality materials and related resources for customers in the high -frequency board industry, and fundamentally control the quality of the product.
⇒The maximum thickness ratio 10: 1 maximum copper thickness 6oz maximum working board size 2000x610mm.
⇒The thinnest 4 -layer board 0.33mm minimum mechanical hole/pad 0.15/0.40mm.
⇒Drilling accuracy +/- 0.05mmpth pore diameter tolerance +/- 0.05mm.
⇒Minimum line width/line distance 3mil/0.075mm.
⇒Mature hybrid technology: FR4+Rogers/Rogers, FR4+PTFE, FR4+408HR, ceramic+FR4.
⇒Equipped with a full set of surface treatment production lines for the high -frequency board industry.
⇒Introduce computer V cutter, German press, laser rig, mechanical drilling machine, automatic exposure machine, LDI, AOI.
⇒The industry is equipped with a full set of surface treatment equipment (Shen Jin, Shenyin, Shen Tin, OSP, tin spray, gold -plated thick gold, tin plating, silver -plated) to reduce the risk of outsourcing production.
⇒Strictly control in accordance with IPC standards to ensure that the qualification rate of shipments is 100%.
⇒Imported automatic detection equipment and temperature circulation inspection equipment to ensure high reliability and stability of the product.
⇒Strictly implement the quality PDCA process and continue to improve product performance.
