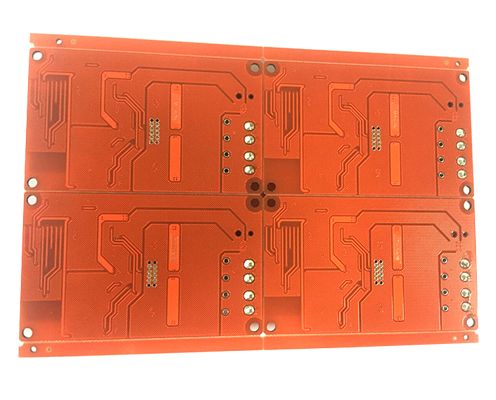

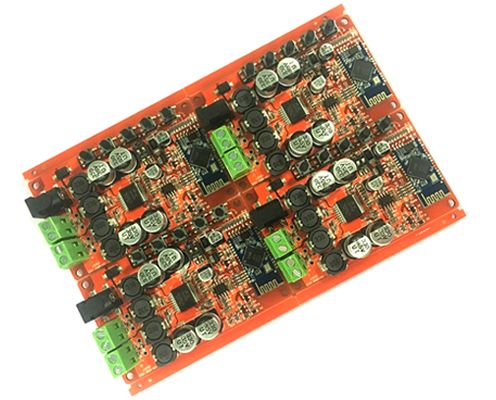

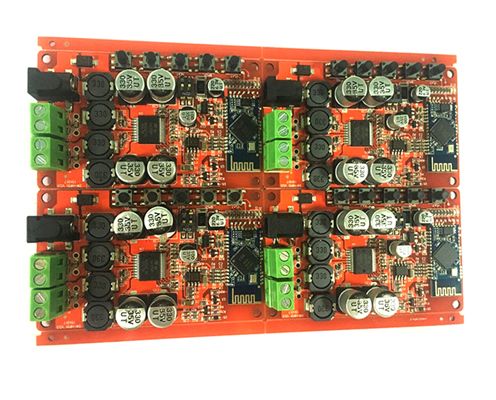

Wireless Bluetooth Audio Receiver Digital Amplifier Board

* 2.1 Interface 8 ~ 25V DC power supply

* Chip : TDA7492P

* Fine-pitch component and BGA placement

* A good soldering workmanship and reliable quality

* Flexible production capacity for high-mix model and low to medium order

* Authorized components source, comprenhive supplier network support.

Get Inquiry

Category: Communication Area

* PCB fabrication from 1-32 layer. (single side, double side, multi-layer, HDI board, bury & blind holes board etc)

* Material procurement and management

* Quick-turn PCBA Prototype and NPI (new product introduction)

* PCBA and through hole assembly

* IC pre-programming & Function verification & burn in testing

* Complete Unit assembly (Box building include the plastic, screen, metal enclosure, membrane, coils, wire harness etc.)

* Small volume is accepted and High-mix models solutions

* AOI, In circuit test, BGA placement

* Engineering support including end of life and obsolete component replacement and design support for circuit, metal,plastic casing and packaging.

Surface processing	HASL/Plating gold / immersion gold /Plating gold finger/OSP/ Flux
Layers	1~32 layers
Copper Thickness	O.5OZ~5OZ
Board Thickness	0.2mm~6.0mm
Min Hole Size	0.2mm
Min Line Width	0.1mm
Min Line Spacing	0.1mm
Max board Size	508mm*609mm
Solder mask type	Green/ Black/ Red/ Yellow/ White/Blue…
Silkscreen color	White / Yellow/ Black
Data file format	Gerber file and corresponding drilling file, PROTEL series, BOM list
Base material	FR4, CEM3, PTFE, Aluminum based, High TG FR4, High frequency board, Rogers
