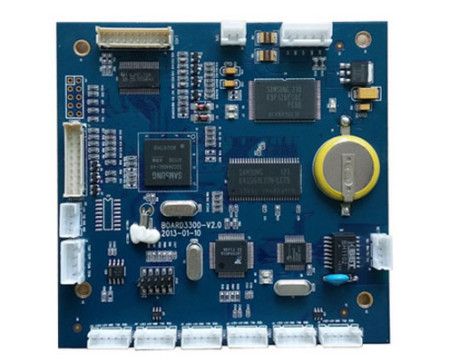

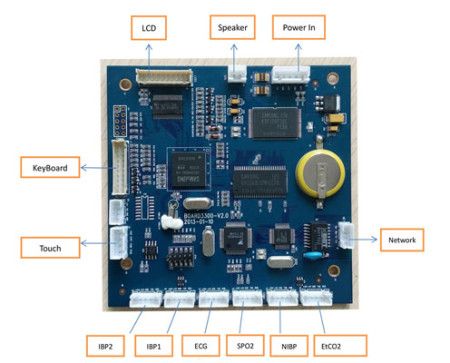

OEM Medical Patient Monitor Mainboard Manufacturing

* PCB board file with parts list provided by customers

* PCB board made, circuit board parts purchased by us

* PCB board with parts assembled

* Electronic testing circuit board or PCBA

* Fast delivery, anti-static packaging

* RoHS Directive-compliant, lead-free

* One-stop service for PCB design, PCB layout, PCB manufacture, component purchasing, PCB assembly, test, packing and PCB delivery

Get Inquiry

Category: Medical Area

* PCB fabrication from 1-32 layers. (single-sided, double-sided, multi-layer, HDI board, buried & blind holes board, etc)

* Material procurement and management

* Quick-turn PCBA Prototype and NPI (new product introduction)

* PCBA and through-hole assembly

* IC pre-programming & Function verification & burn in testing

* Complete Unit assembly (Box building includes the plastic, screen, metal enclosure, membrane, coils, wire harness, etc.)

* Small volume is accepted and high-mix model solutions

* AOI, in-circuit test, BGA placement

* Engineering support including end-of-life and obsolete component replacement and design support for circuit, metal, plastic casing, and packaging.

Surface processing	HASL/Plating gold/immersion gold /Plating gold finger/OSP/ Flux
Layers	1~32 layers
Copper Thickness	O.5OZ~5OZ
Board Thickness	0.2mm~6.0mm
Min Hole Size	0.2mm
Min Line Width	0.1mm
Min Line Spacing	0.1mm
Max board Size	508mm*609mm
Solder mask type	Green/ Black/ Red/ Yellow/ White/Blue…
Silkscreen color	White / Yellow/ Black
Data file format	Gerber file and corresponding drilling file, PROTEL series, BOM list
Base material	FR4, CEM3, PTFE, Aluminum based, High TG FR4, High frequency board, Rogers

Delivery for samples will be 10-15 days after the OEM Contact is signed and the Engineering Documents are confirmed.

For Mass production, based on the customer requirements, delivery can be done in several batches (partial delivery).
