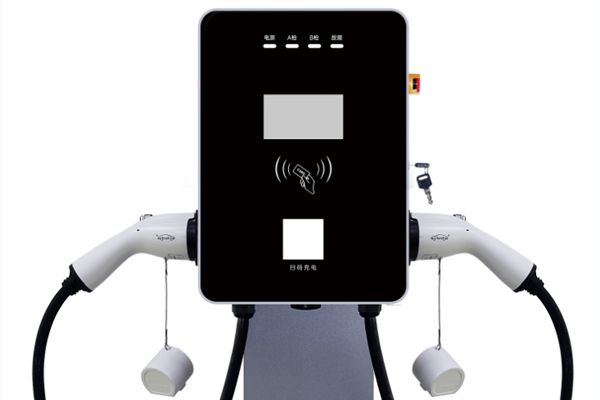

This charging pile is mainly suitable for home use or underground parking. The product is small, lightweight, quick to install, and easy to use. AC wall design, maximum output power of 7kW, safe and stable, and high system integration.What is the concept of 7kw? To a new energy vehicle with a driving range of 400 kilometers (battery energy is 50kwh), 50kwh means that a full charge needs to consume 50 KWH of electricity, and a 7kw charging pile means that it can charge about 7 KWH of electricity in 1 hour, and it can be full in about 7 hours.

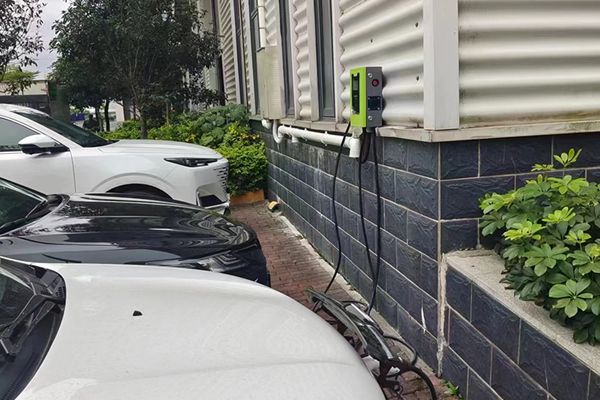

The AC charging pile provides AC 50Hz, rated voltage 220V AC power supply, providing electric vehicles with a vehicle charger, which is mainly suitable for the following places:
◆ Charging station of large, medium, small electric vehicles;
◆ Urban residential communities, shopping squares, electricity business places, etc. have various public places with electric vehicle parking spaces;
◆ High -speed service area, station dock and other transportation hub areas.
◆ Safety and stability: The charging pile provides reliable electrical security protection functions, which can prevent theft, dustproof, waterproof, and stable operation to ensure long -term reliable operation. The protection level meets the outdoor IP55 level;
◆ High system integration: The functions required for the entire charging box, such as charging, man -machine operation, safety protection, measurement and billing, etc.
◆ Simple and easy to use: human -machine interface is friendly, simple and clear, and easy to operate.
◆ Small area and convenient installation: The plane area and space volume occupied by the entire charging box are small, which improves the spatial utilization rate and is convenient for installation and use in tight land use areas.
◆ Precise measurement: Embedded meters and billing systems, providing accurate measurement and billing functions.
◆ Multiple protective processes (anti -humidity, anti -mildew, salt prevention and rust protection).
Circuits such as printing circuit boards and connecting plug-ins in the pile are treated with moisture, anti-mildew, and salt-proof mist treatment to ensure that the charging pile can operate normally in an environment of humidity and salt and mist. The loading pile shell and exposed iron brackets and parts are used for double-layer rust-proof measures.
The non-iron metal shell also has an anti-oxidized protective film or anti-oxidation treatment.
◆ Exquisite appearance: The overall appearance design is simple and generous, exquisite and beautiful.
| Product model | WG–JG7K/220-Y2 |
| Input voltage | 220V±15% |
| Output voltage | 220V±5% |
| Rated output current | 32A |
| Ac input frequency | 50Hz±1% |
| Maximum output power | 7kW*2 |
| Cable length | 4 m |
| Shell material | Engineering plastics |
| Equipment size（mm） | 122*211*345 (Depth x width x height) |
| altitude | ＜2000m |
| Operating temperature | -20℃～+50℃ |
| Working humidity | ＜95% |
| Protection class | IP55 |
| Human-computer interaction | Size 4.3 “industrial special LCD screen, resolution 480*272 |
| Protection function | Leakage current, over and under voltage, over and under frequency, over current, high and low temperature, grounding protection, lightning protection |
| Implementation standard | GB/T 20234-2015 |
(1) Electric vehicle AC charging piles are powered on and the charging pile gun head is inserted into the car charging port.
(2) Check whether the vehicle carrier ends and starts the normal charging, and the charging pile enters the charging state.
(3) The user enters the charging state. The display screen can display current charging information such as current voltage current.
(1) The pile body is easily fixed with ground foot bolts to prevent the pile body from tilting and jittering due to external and human factors;
(2) To deal with charging piles to achieve shading and rainproof measures, it is recommended to install a shade of duty;
(3) Regularly check whether all bolts in the charging pile are tight, whether the connection line is loose, and the connection is not solid;
(4) Check whether there is a short circuit;
(5) Check whether the emergency stop button is available;
(6) Pay attention to lightning protection to ensure effective shielding and reliable grounding of the charging pile;
(7) When using, try to control the output voltage and current of the charging pile within the nominal range to ensure the maximum efficiency of the charging pile.
State work;
(8) When the pile body is stopped, the charging outlet should be stopped first, and then the cable should be wrapped and returned to the original position.
Note: During the transport of the loading pile, the packaging pile is firmly packed and the direction of loading and unloading is prohibited. The loading pile is prohibited from storing and transporting it. There must be corresponding tight measures to avoid strong vibration and bumps damaged equipment.
This electric AC charging pile is an intelligent, easy to install charging pile that allows you to add intelligent services and remotely manage charging piles. Combined with mobile applications, it provides a series of functions to control your charger status, user, charging schedule, energy consumption, etc. Intelligent features make it an ideal choice for home or commercial charging.
